12V DC Power Supply Controller for Access Control Systems - Converts AC 110-240V to DC 12V - Compatible with Electric Strike Locks, Magnetic Locks, Intercoms & Video Door Phones - Ideal for Home Security & Commercial Building Access Control
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
78581422
Description

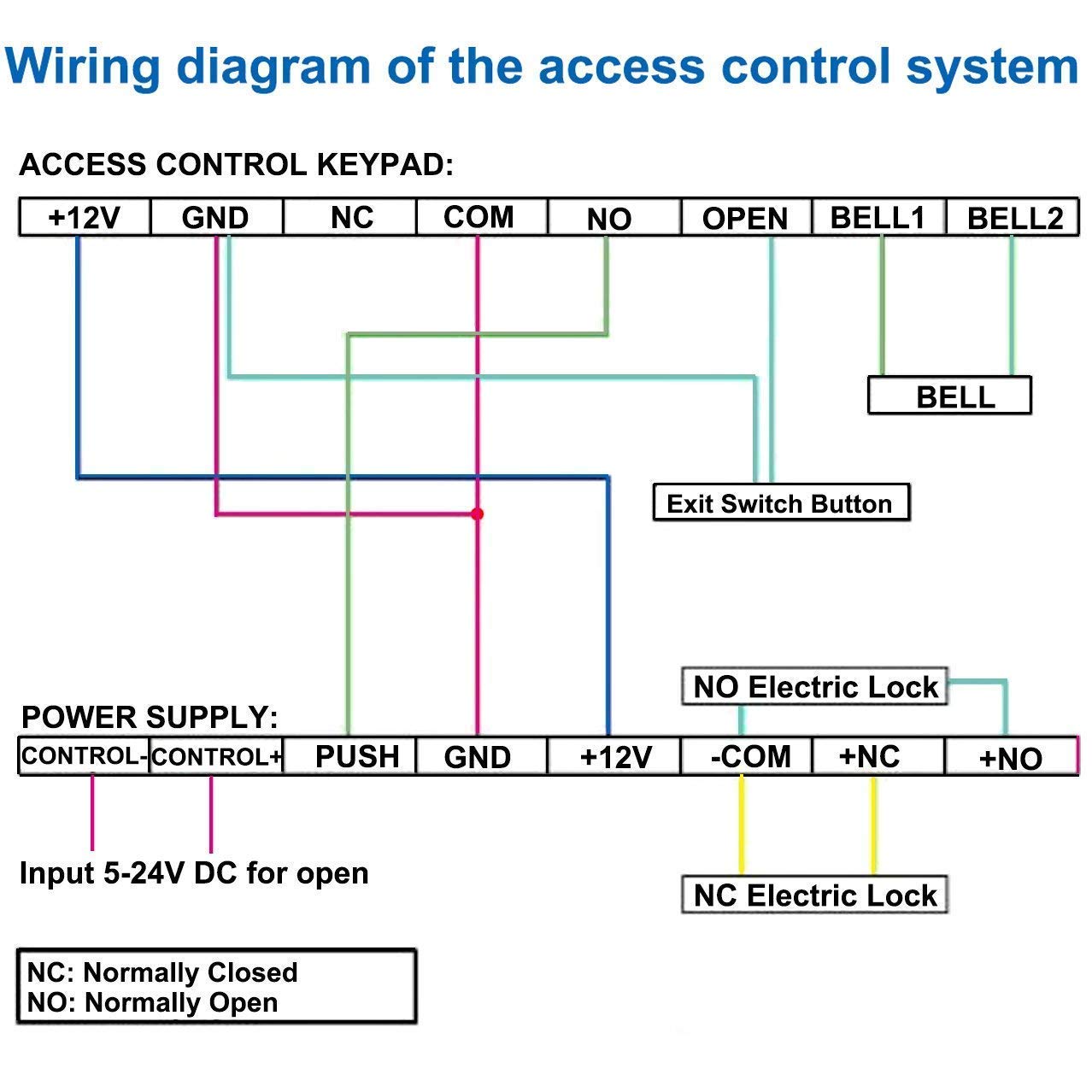

Features: Compatible with world voltage, light weight, convenient transportation, small disturbanceNC / NO outputs, can control various types of electric locksReduce the load of access controller, save wiring to reduce the hidden troubleWide input voltage range, steady and precise,Automatic protection function:overload/ over voltage/ short circuitIt can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable)Provide very stable and reliable output Voltage range input: AC 110V - 240V 50~60Hz DC output: Stabilizator DC12V/ 3A, Power: 36W Adjustable Locking Delay: 0~15sec Operating Temperature: -20C~65C Output Stability: 0.5% Typical Widely applied in access control system such as Electric Magnetic lock , lock controller, RFID-IC card reader ,password keypad etc. 0~15 Seconds Adjustable Based delay control circuit, It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable). Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down. Electric door lock connect to power supply control NO and COM port Set NC / NO outputs, can control various types of electric locks Compatible with electirc lock, access controller, exit push button and RFID reader Magnetic / Bolt / Strike door lock and etc lock connect to power supply control NC and COM port Dimensions: Body: 4.0L x 2.66W x 1.30H (in) Pitch:1.18 x 3.15 (in)Aperturer:0.15 (in)
Features
This power supply is small, easy to install and easy to use, the input voltage range from 100V-240V to normal use, suitable for all countries of the world.
Power supply for door access control is a transformer which provides stable output voltage for access controller, electric lock, and exit button.
Set NC / NO outputs, can control various types of electric locks, Based delay control circuit, lock time can be in 0-15 seconds.

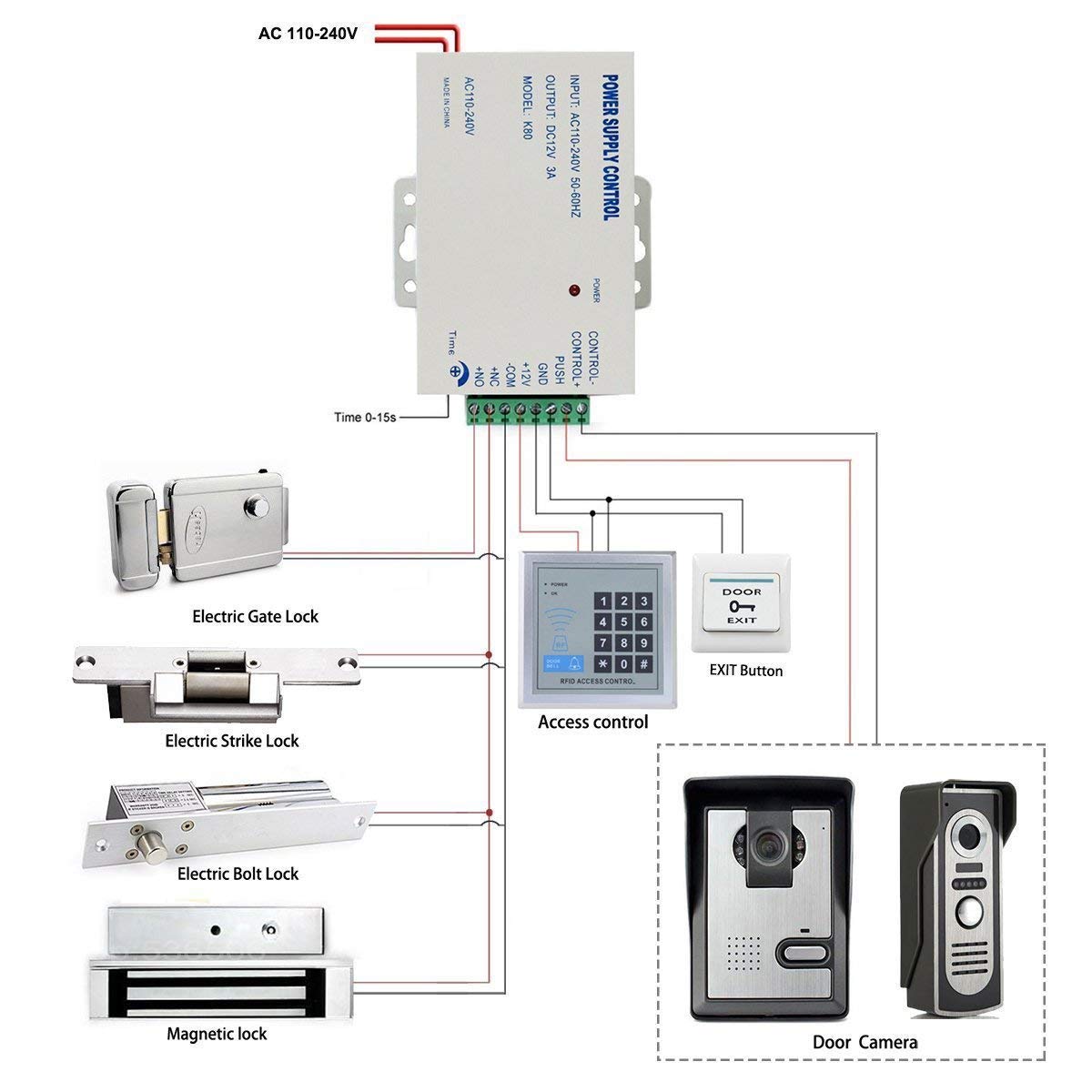

Compact design and light weight, Short-circuit and overload protection for safety use, Can control various types of electic gate lock, electric strike lock, electic bolt lock, magnetic lock.
The scope of application of the power applied to a variety of building intercom, villa doorbell, aparment doorphone, home video door phone controller, access a variety of import and export controls.
