Waterproof 350LBS (180KG) Holding Force Electromagnetic Lock - 12V Fail Safe NC Mode Electric Magnetic Door Lock for Access Control System - Ideal for Office Buildings, Hotels & Security Gates

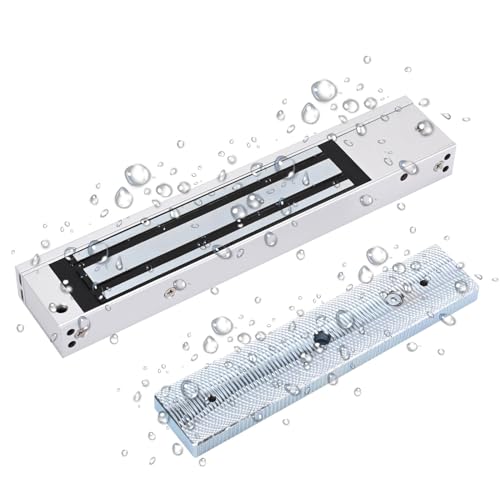

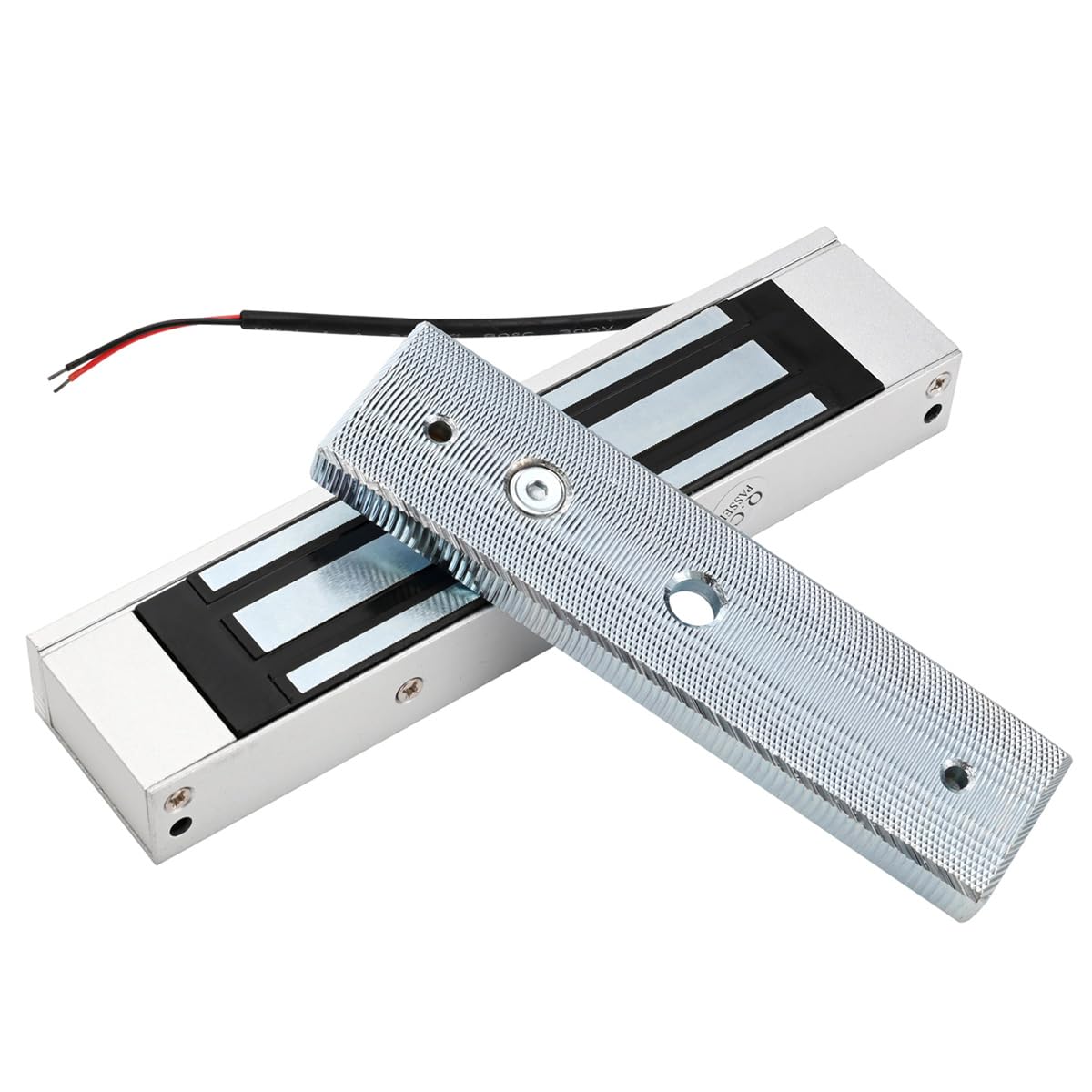

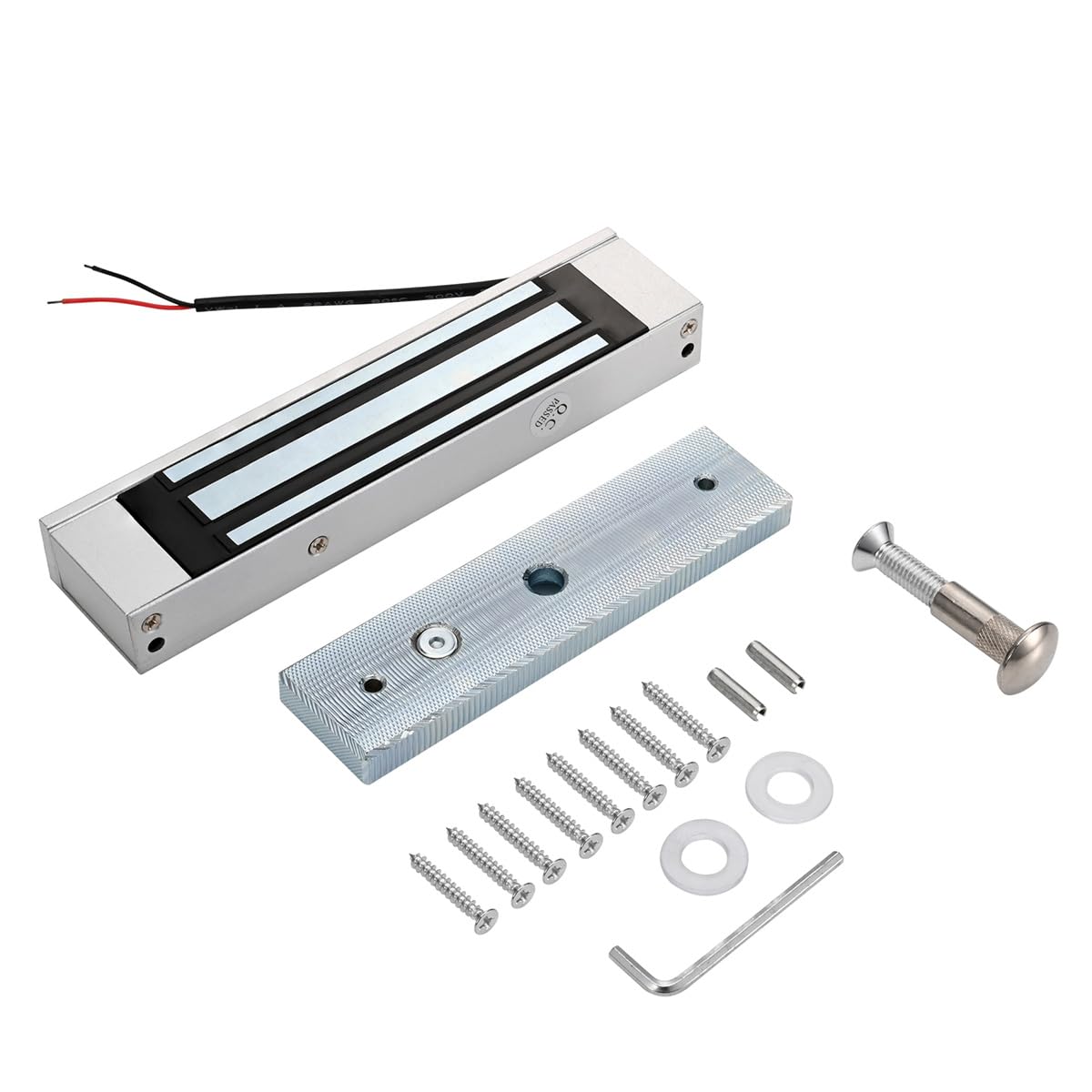

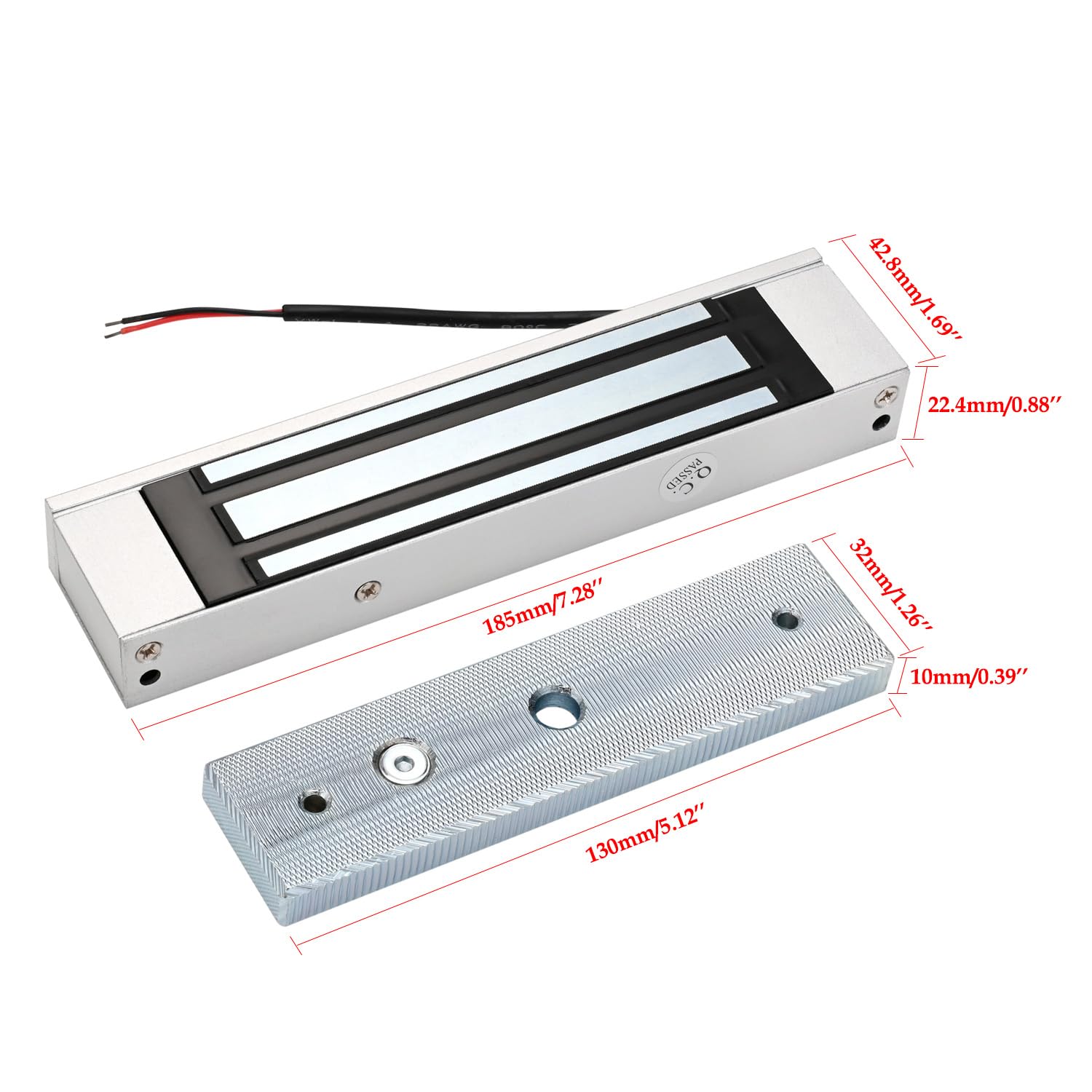

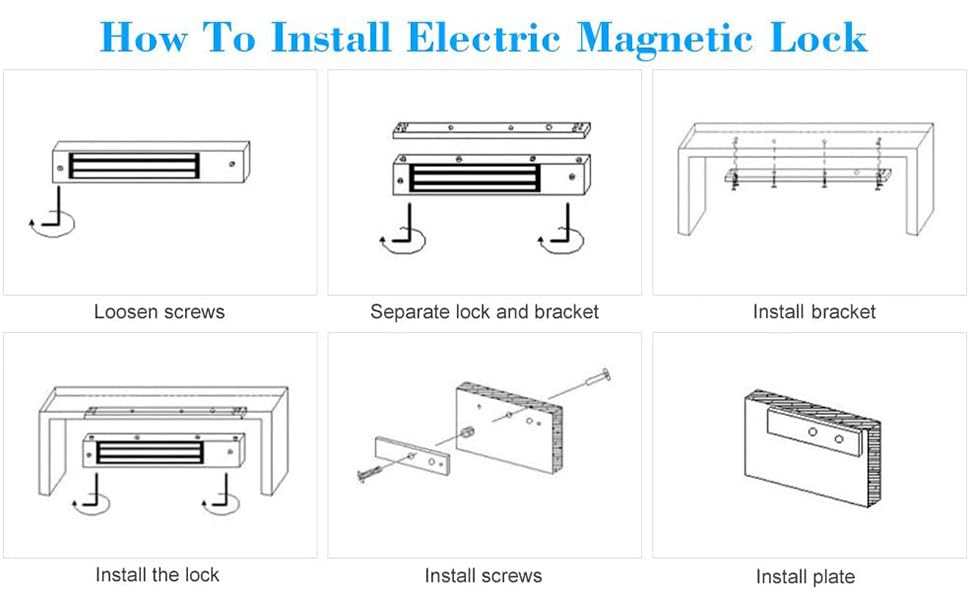

Electromagnetic Lock Waterproof 350LBS 180KG Holding Force 12V DC for Access Control System Features: This magnetic door lock provides a holding force of 350lb (180KG).High strength aluminum alloy material.It consists of an electromagnet and an armature plate used for access control door locks.Attach this electromagnet lock to the door frame and the armature plate to the door.When a current passing through the electromagnet, it attracts the plate and holds the door lock shut.Waterproof design; the circuit board and chip are glued, making it suitable for both indoor and outdoor use.NC mode (fail safe), the door will be closed when power is on; when power off, the door will open.It is suitable for wooden door, glass door, metal door, fire-proof door, cabinet, etc. Specification: Electromagnetic plate Material: Aluminum Alloy Armature Plate Material: Electrician pure iron Holding Force: 350LBS/180KG Suitable for: Wooden/glass/Metal/fireproof door, etc Input Voltage: DC 12V Operating Temp: -10 ~ +55C (14-131F) Electromagnetic: 6.69Lx1.50Wx0.87H (in) Armature plate: 5.12L x 1.30W x 0.43H (in) Package Weight: Approx. 2.2lb (1KG) Package List 1 * Magnetic Lock 1 * Armature Plate 1 * Screws Pack 1 * English User Manual Installation Steps: 1. loosen the 2 screws in the 2 holes at the bottom of the lock by the hex screwdriver2. Separate the lock and bracket3. Install the bracket4. Tighten the 2 screws in the holes to install the lock5. Mark the position of the armature plate and drill 3 holes on the door6. Use a hammer to drive the two guide pins into the armature plate7. Install the armature plate Attention: Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.Please keep the surface of the lock clean and make sure the armature plate and lock body perfectly aligned to get the best holding force.When the door frame thickness is less than 38mm (1.50 inch), L bracket is needed.For inward opening door, ZL bracket is needed.If you need the lock to be installed with ZL Bracket, you can buy this ASIN B0CYWZKR3Y.
