280KG 600LBS Heavy Duty Electric Magnetic Lock - 12V Fail Safe NC Mode Electromagnetic Lock for Single Door Access Control System | Ideal for Office Buildings, Smart Homes & Security Gates
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
60611024
Description

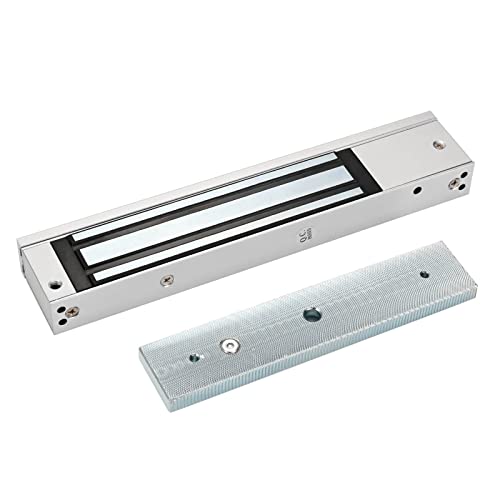

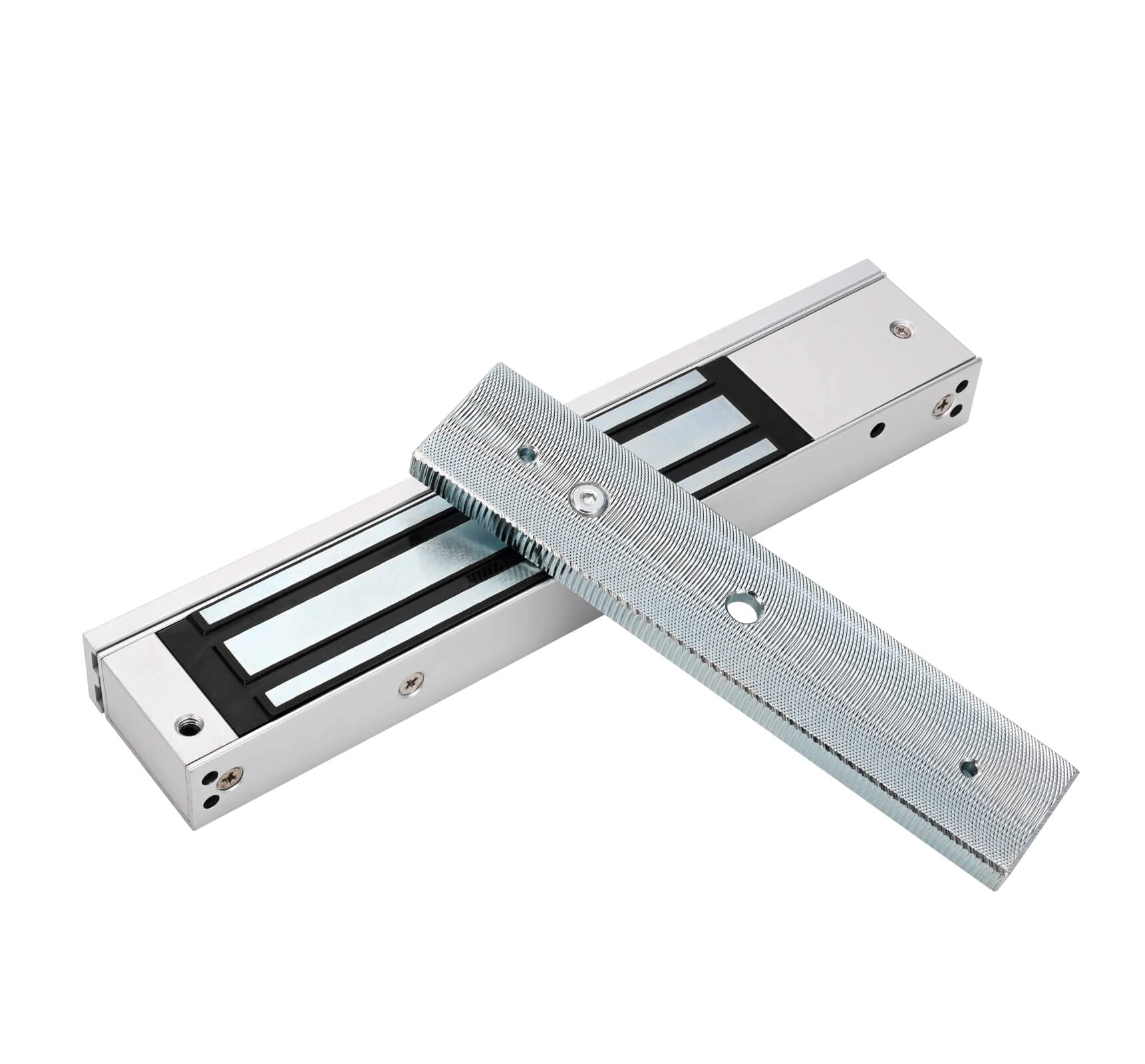

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. The door will be closed when power is on; when power off, the door will open. It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc. Specification: Electromagnetic plate Material: Aluminum Alloy + Metal Plate Armature Plate Material: Zinc Cover Finish: Anodized aluminum Color: Silver Holding Force: 280kg/600lbs Input Voltage: DC 12V Operating Temp: -10 ~ +55C (14-131F) Operation Current: 480mA Size: 9.84L x 1.93W x 0.98H (in)/ 290L x 45W x 25H (mm) Armature plate: 7.09L x 1.50W x 0.43H (in)/ 180L x 38W x 11H (mm) Package Weight: Approx. 4.0lb (1.78KG) Package list: 1 * Electromagnetic Lock 1 * Armature Plate 1 * Screws Pack 1 * User Manual (English)
Features
Materials Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 280KG (600LBS) and significant features.

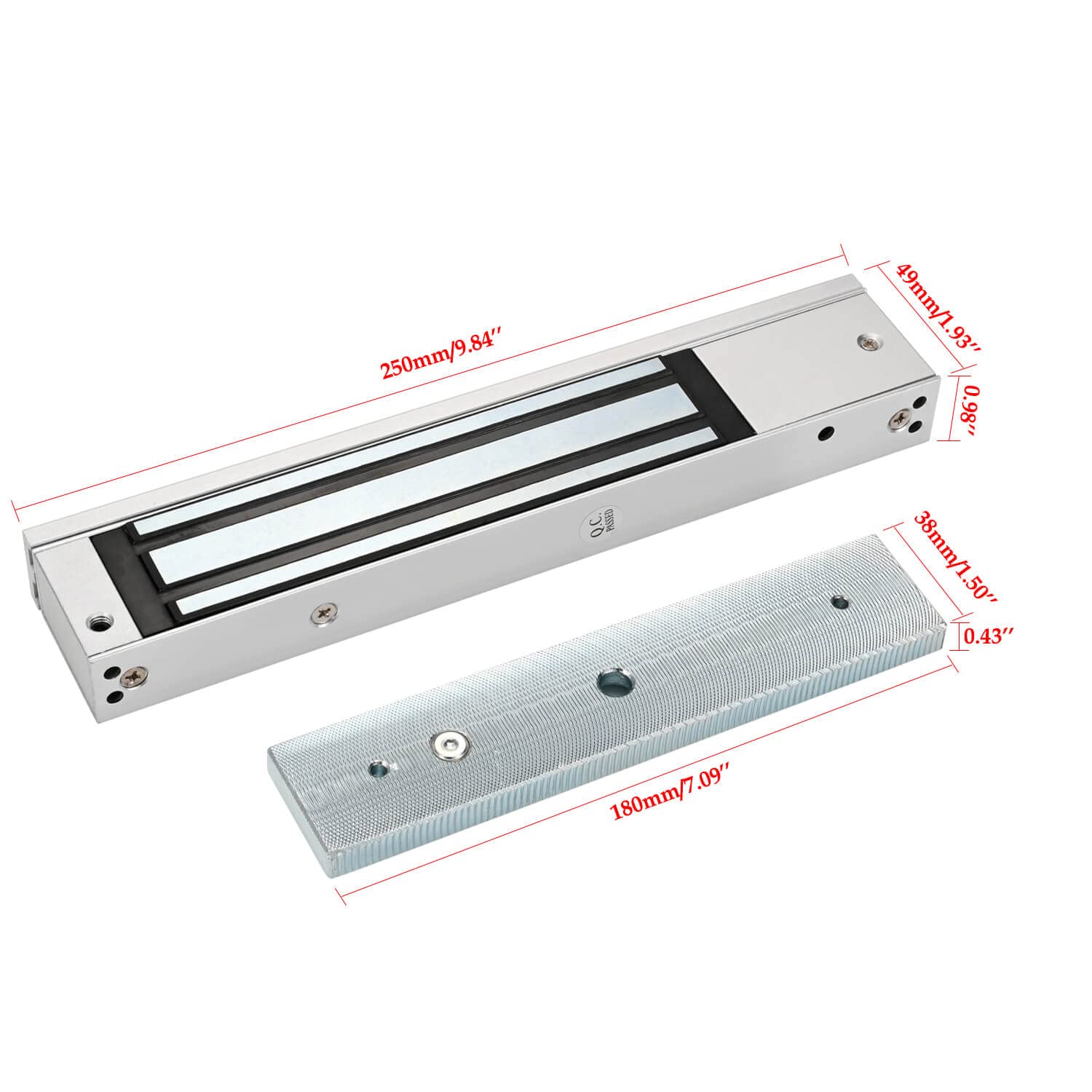

Size The lock size is 9.84'' x 1.93'' x 0.98'' (250x49x25mm); Armature plate 7.09'' x 1.50'' x 0.43'' (180x38x11mm). Holding Force 280kg (600lbs).
Mode NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode. Voltage DC12V.
Security protection This electric magnetic lock has safety function. It is built in voltage spike suppressor.
Wide Applications This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
